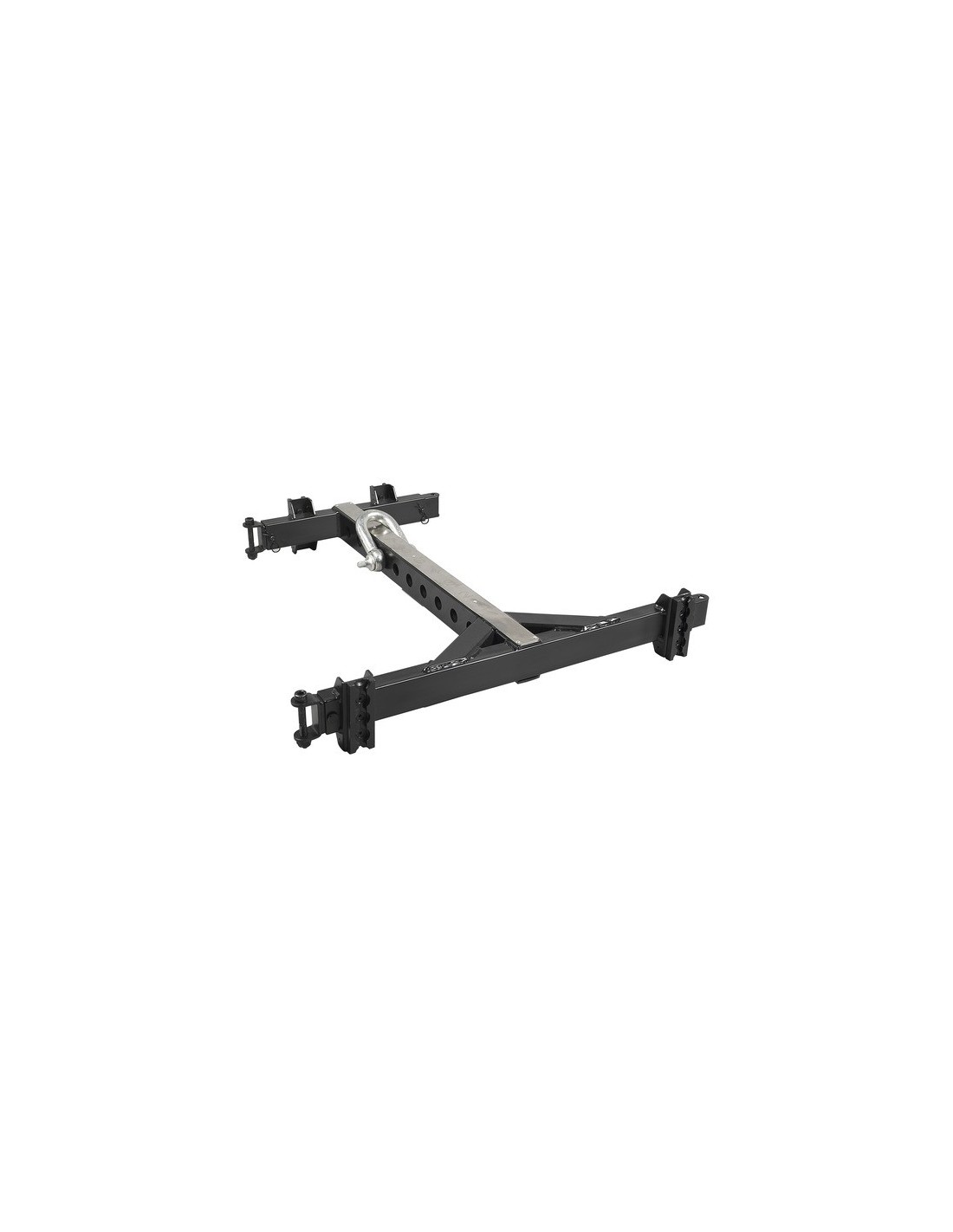

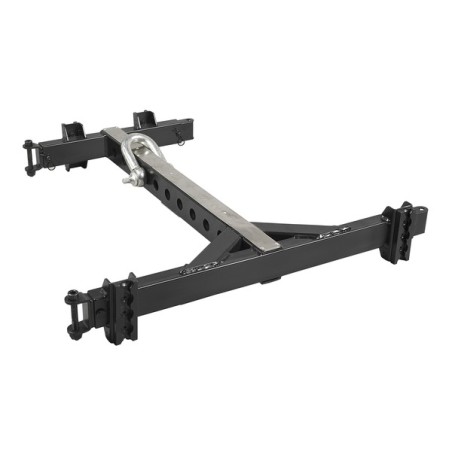

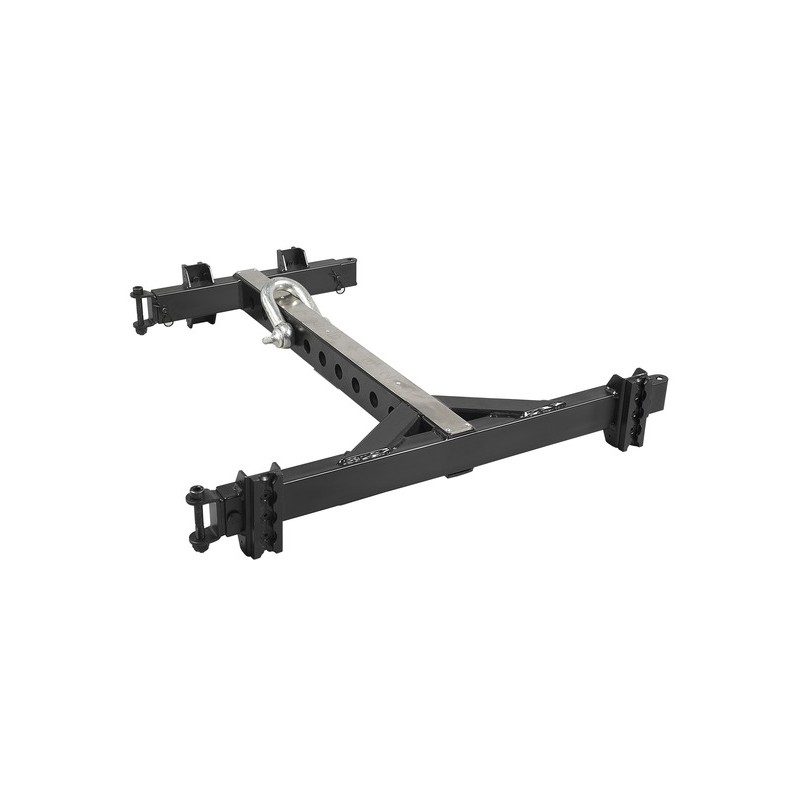

Flying bar element for EDGE212P and EDGE218SP loudspeakers.

The KPTED1218 is the basic element of the EDGE systems flying bar. The element features front and rear flying-tracks for the connection of the loudspeakers and telescopic braces for the cross connection of the single KPTED1218 elements of the flying bar. The telescopic braces are fitted using numbered connecting points. By using the same position both for the front and the rear brace, the angle formed between the columns of the array will be 25°. The position of the extendable brackets, as well as changing the angle, can be used to alter the distance between the columns of the array: the longer the position of the bracket, the further apart the columns will be. For acoustic reasons, it is recommended to use corresponding holes for both the front and rear telescopic brackets in order to keep the angle between the columns at 25° and to minimize the distance between the columns of the array.
